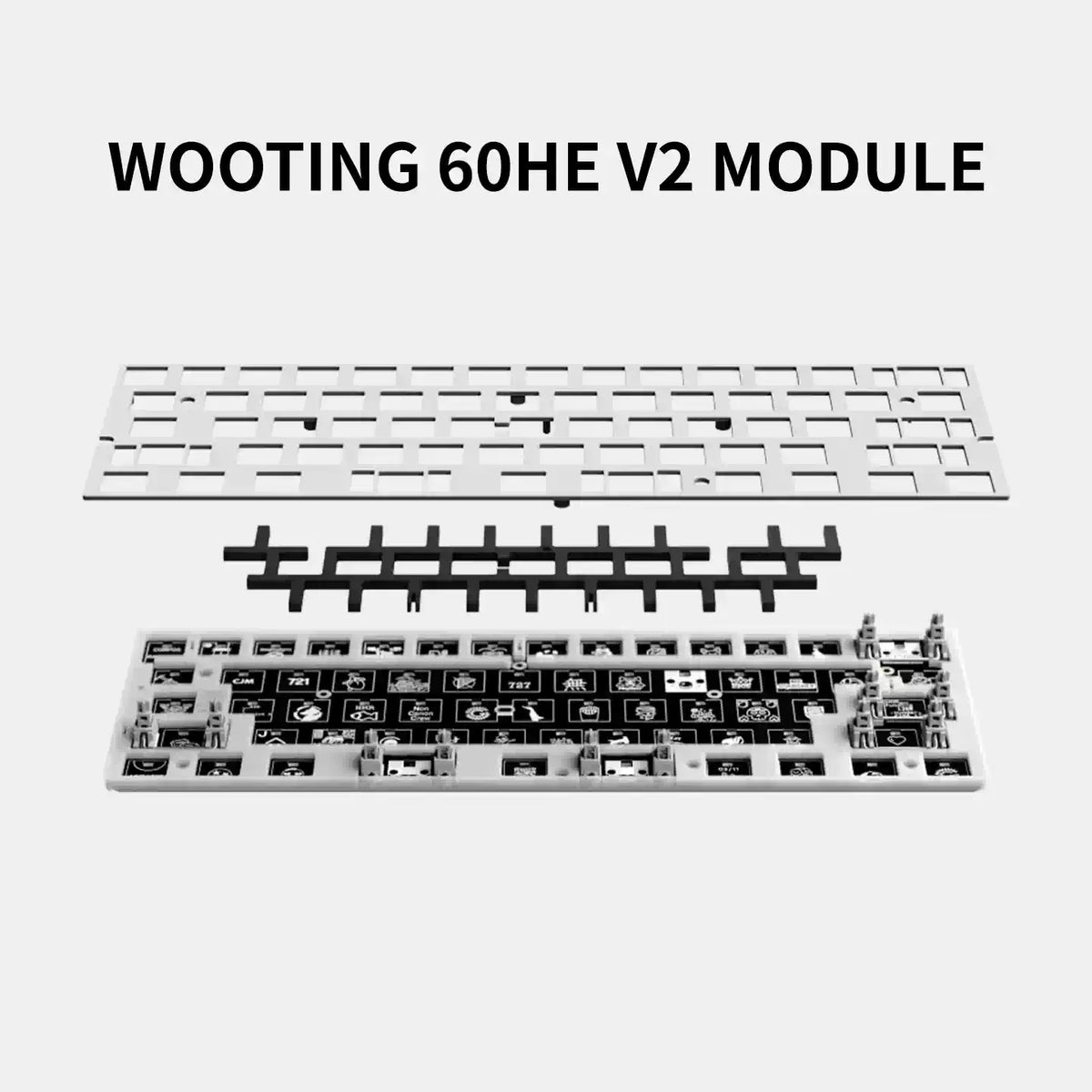

Build a personalized 60% magnetic keyboard around the Wooting 60HE V2 module. This module-focused package provides the PCB and essential installation accessories while leaving the case, magnetic switches and keycaps to the builder.
The selected version uses a split-spacebar layout. Its upgraded controller supports true synchronized 8,000 Hz polling and key scanning, with input latency stated at approximately 0.125 ms when the high-speed mode is enabled in Wootility.
Key Features
- True 8,000 Hz polling and synchronized key scanning for consistently responsive input.
- Approximately 0.125 ms stated input latency with the upgraded controller and high-speed mode enabled.
- Per-key configuration through Wootility, including magnetic-switch features such as adjustable actuation and Rapid Trigger.
- Module format supports a custom choice of compatible case, magnetic switches and keycaps.
- Designed for gaming and performance-focused 60% keyboard builds.
Compatibility
- Compatible with many standard 60% keyboard cases; confirm PCB mounting points, USB opening and internal clearance before purchase.
- This listing is for the selected joint-spacebar PCB layout.
- Use compatible magnetic switches. Conventional mechanical switches are not interchangeable with a magnetic-switch PCB unless specifically supported.
- Configuration and high-speed settings are managed through Wootility.
Specifications
-
Model: Wooting 60HE V2 Module
-
Form factor: 60% custom keyboard module
-
Selected layout: Joint spacebar
-
Switch technology: Magnetic / Hall-effect compatible
-
Polling and scan rate: Up to 8,000 Hz, synchronized
-
Stated input latency: Approximately 0.125 ms in high-speed mode
-
Configuration software: Wootility
Package Includes

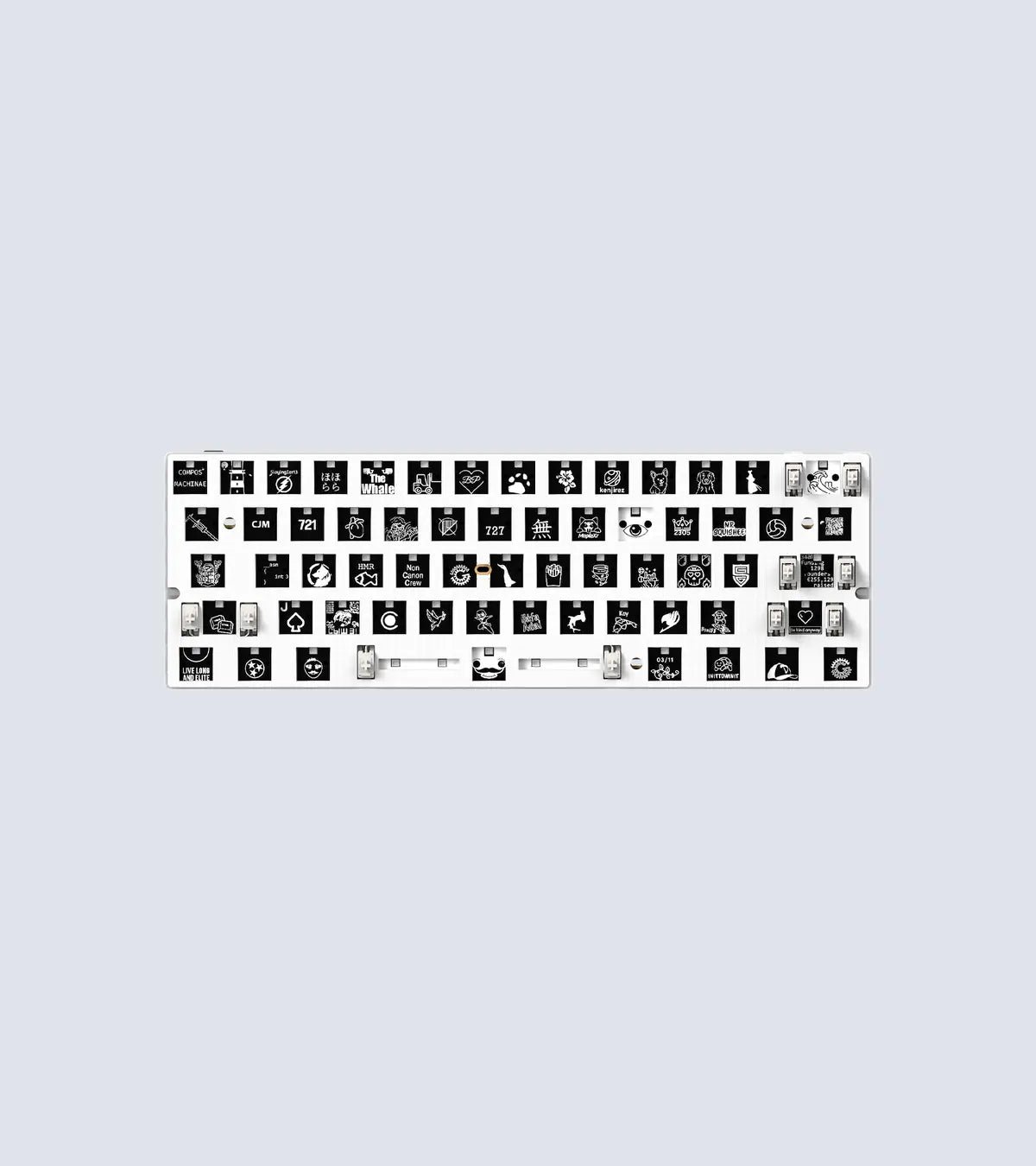

- 1 x Wooting 60HE V2 PCB module.
- 1 x combined Wooting switch/keycap puller.
- 1 x PCB module removal tool.
- 1 x 2 m USB-C to USB-C 2.0 cable in black/yellow.
- 1 x USB-C female to USB-A male adapter.
- 4 x spare M2 x 4 mm PCB screws.
- 2 x spare silicone caps/pads.
- 1 x postcard.
Important Notes
- Module only. A keyboard case, magnetic switches and keycaps are not included with the selected option.
- The selected split-spacebar layout requires matching build components; verify compatibility before ordering.
- High-speed mode must be enabled in Wootility to access the stated maximum polling performance. The source page notes that this mode may reduce RGB brightness and disable some RGB effects.
- Product appearance, included accessories and compatibility can vary by seller option or production revision. Confirm the selected configuration before purchase.
